Product Code:

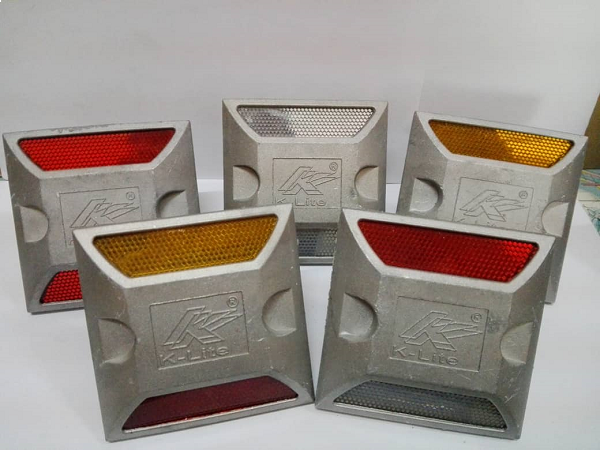

• A/RS2/D/AMBER - Double Amber Colour
• A/RS2/D/WW - Double White Colour
• A/RS2/D/RR - Double Red Colour
• A/RS2/D/R/AMBER - Double Red / Amber Colour
• A/RS2/D/RW - Double Red / White Colour

Description:

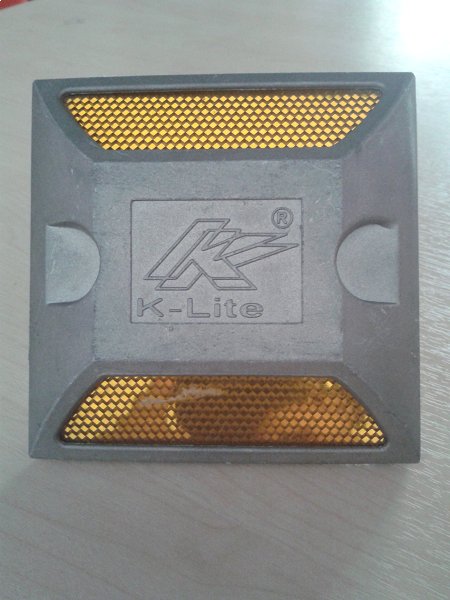

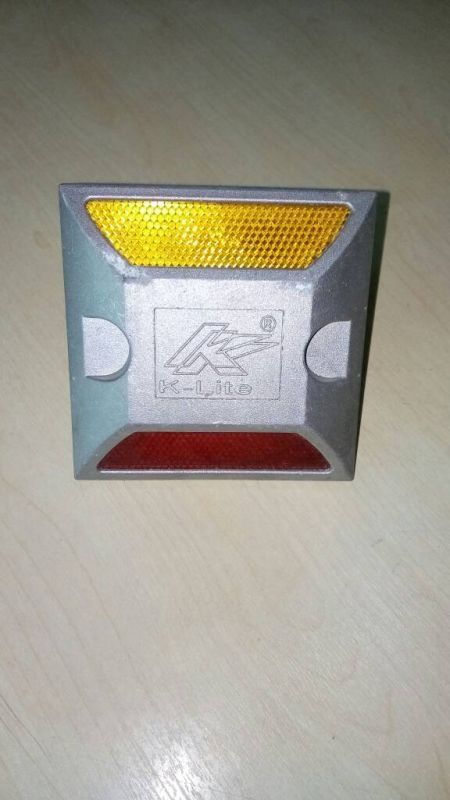

K-LITE Aluminium Road Stud use high performance prismatic cube corner reflective lens. The height allows them to stand on the road whilst their retro-reflective lenses efficiently reflect vehicle headlights even from acute angles and over long distances and will provide maximum day time and night time visibility as a durable aluminium road stud.

Specifications:

• Model: KT-303
• Size: 100 mm x 100 mm x 20 mm

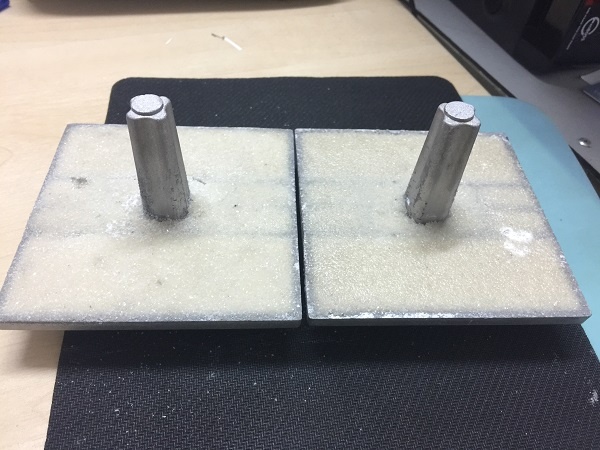

• Stem length: 50 mm (H)
• Weight : 300 grams
• Body material: Aluminium shell
• Base material: Epoxy glue and quarzt sand filling
• Reflective panel: High performance prismatic cube corner
• Colours: Amber/amber, red/white, amber/red, single amber, single red and single white
• Durable: K-LITE aluminium road stud had been tested under SIRIM MS1719 : 2003-Specification for Raised Pavement Marker (RPM) Clause 5.5.5-Compressive strength.
• Cost effective
• Highly reflective: It is clearly visible 300 metres away.
• PMMA made lens with highest reflectivity Highest reflectivity-fade resistance Special groove design to improve reflectivity and compression resistance Lowest cost, good adhesive ability, easy to install makes it popular on global market.

  PACKING SIZE : 380mm x 390mm x 230mm
  WEIGHT : 18KG
  1 BOX 50PCS

*** A sample of Aluminium Road Stud , Brand; K-Lite (KT-303) have been tested by SIRIM QAS Intl. for Compressive Strenght Test according to MS 1719:2003 ( Test Report No: 2023MA0935 dated 05 SEPTEMBER 2023 )

PDF or Doc Download

SIRIM_303.pdf
